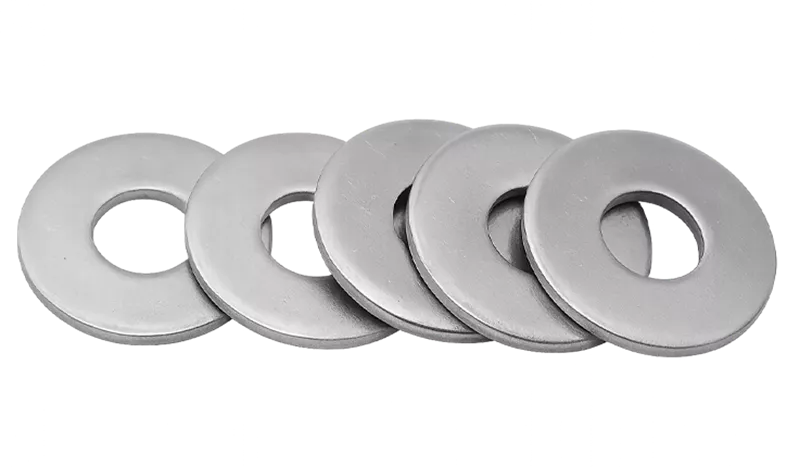

UNC & UNF Düz Pul
Ürün Adı: Düz Pul
Ürün Kodu: UNC & UNF
Thread size / Anma çapı |
1.8 |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
5/16 |
3/8 |
7/16 |
1/2 |
9/16 |
5/8 |
3/4 |
7/8 |
1" |
1 1/4 |
1 1/2 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hole dia / Delik çapı | d1 | 3 | 4 | 5 | 7 | 9 | 11 | 12 | 13 | 9 | 11 | 12 | 13 | 15 | 17 | 21 | 24 | 27 | 32 | 45 |
| max. | 3.18 | 4.18 | 5.18 | 7.22 | 9.27 | 11.27 | 12.27 | 13.27 | 9.27 | 11.27 | 12.27 | 13.27 | 15.27 | 17.27 | 21.33 | 24.33 | 27.33 | 32.39 | 45.62 | |
| Outside dia / Dış çap | d2 | 9 | 12 | 16 | 17 | 22 | 26 | 28 | 33 | 22 | 26 | 28 | 33 | 36 | 40 | 45 | 48 | 56 | 65 | 84 |
| min. | 8.64 | 11.57 | 15.57 | 16.57 | 21.48 | 25.48 | 27.48 | 32.38 | 21.48 | 25.48 | 27.48 | 32.38 | 35.38 | 39.38 | 44.38 | 47.38 | 55.26 | 63.80 | 83.00 | |
| Thickness / Et kalınlığı | h | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 6.0 | 6.0 | 3.0 | 3.0 | 3.0 |
| +/- | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.3 | 0.3 | 0.3 | |
| Weight / Ağırlık | gr/p | 0.44 | 0.61 | 1.31 | 1.82 | 3.12 | 3.45 | 4.16 | 5.55 | 7.14 | 9.09 | 11.6 | 16.7 | 18.5 | 26.3 | 34.4 | 41.7 | 45.5 | 76.9 | 90.9 |
