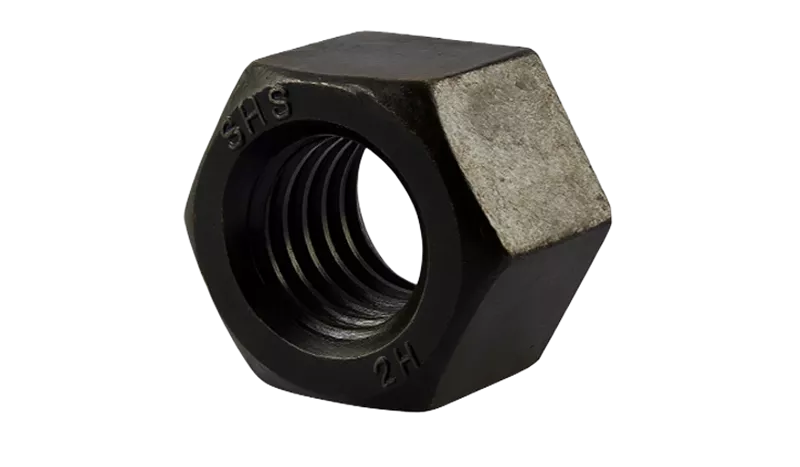

ASTM A194 2H Somun
Ürün Adı: ASTM STANDARDINDA SOMUNLAR
Ürün Kodu:
Technical informations. / Teknik Bilgiler
d
|
s |
h |
e |
Diş Sayısı |
100 Adet
|
|---|---|---|---|---|---|
| 3/8 | 17 | 9.1 | 19.7 | 16 | 14 |
| 7/16 | 19 | 10.7 | 22 | 14 | 19 |
| 1/2 | 22 | 12.3 | 25.4 | 13 | 30 |
| 9/16 | 24 | 13.0 | 27 | 12 | 37 |
| 5/8 | 27 | 15.5 | 31.2 | 11 | 45 |
| 3/4 | 32 | 10.7 | 35.7 | 10 | 88 |
| 7/8 | 36 | 21.0 | 41.6 | 9 | 135 |
| 1" | 41 | 26.0 | 47.2 | 8 | 105 |
| 1"1/8 | 46 | 28.2 | 52 | 8 | 200 |
| 1"1/4 | 50 | 31.0 | 57.8 | 8 | 357 |
| 1"3/8 | 55 | 34.1 | 63.5 | 8 | 463 |
| 1"1/2 | 60 | 37.3 | 69.3 | 8 | 595 |
| 1"5/8 | 65 | 40.5 | 75 | 8 | 736 |
| 1"3/4 | 70 | 43.6 | 78.6 | 8 | 927 |
| 1"7/8 | 75 | 46.8 | 85.5 | 8 | 1096 |
| 2" | 80 | 50.0 | 90 | 8 | 1358 |
| 2"1/4 | 90 | 55.0 | 100 | 8 | 1903 |
| 2"1/2 | 100 | 62.3 | 111.6 | 8 | 2583 |
| 2"3/4 | 105 | 70 | 124.3 | 8 | 3350 |
| 3" | 115 | 78.2 | 145.8 | 8 | 4320 |
Values are given in millimeters. / Değerler milimetre olarak verilmiştir.
