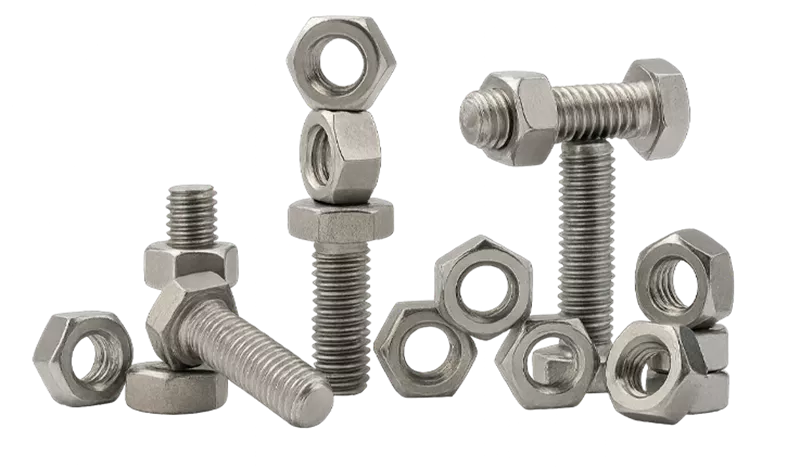

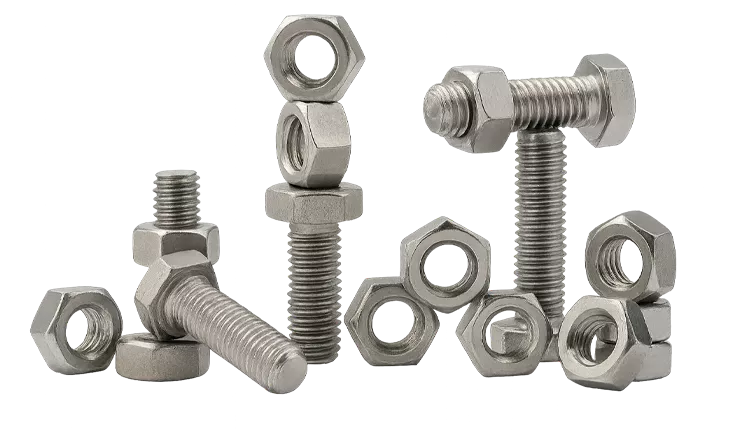

Altıköşe Başlı Çelik Konstürüksiyon Civata
Thread size / Anma çapı |
M12 |
M16 |
M20 |
M22 |
M24 |
M27 |
M30 |
|
|---|---|---|---|---|---|---|---|---|
| Pitch / Diş adımı | P | 1.75 | 2.00 | 2.50 | 2.50 | 3.00 | 3.00 | 3.50 |
| Wire dia / Tel çapı | min. | 11.3 | 15.3 | 19.16 | 21.16 | 23.16 | 26.16 | 29.16 |
| Head high / Kafa yüksekliği | k | 8 | 10 | 13 | 14 | 15 | 17 | 19 |
| +/- | 0.16 | 0.18 | 0.22 | 0.22 | 0.22 | 0.35 | 0.42 | |
| Head with / Anahtar ağzı | sw | 19 | 24 | 30 | 32 | 36 | 41 | 46 |
| Diagonal / Köşegen | e | 20.88 | 26.17 | 32.95 | 35.03 | 39.55 | 45.20 | 50.85 |
| Nut height / Somun yüksekliği | m | 8 | 13 | 16 | 18 | 19 | 22 | 24 |
| Thread length / Diş uzunluğu | b | 17.75 | 21 | 23.5 | 25.5 | 26 | 29 | 30.5 |
Thread size / Anma çapı |
M12 |
M16 |
M20 |
M22 |
M24 |
M27 |
M30 |
|
|---|---|---|---|---|---|---|---|---|
| Length / Boy | Mass for 1.000 units in kg. / 1.000 Tanesinin ağırlığı. | |||||||
| 30 | +/- 0.42 | 57.5 | ||||||
| 35 | +/- 0.50 | 62.0 | 117 | |||||
| 40 | +/- 0.50 | 66.4 | 125 | 222 | 281 | |||
| 45 | +/- 0.50 | 70.8 | 133 | 234 | 296 | 369 | ||
| 50 | +/- 0.50 | 75.3 | 141 | 247 | 311 | 387 | ||
| 55 | +/- 0.60 | 79.7 | 149 | 259 | 326 | 405 | ||
| 60 | +/- 0.60 | 84.2 | 157 | 272 | 341 | 423 | 585 | |
| 65 | +/- 0.60 | 88.6 | 164 | 284 | 356 | 440 | 607 | |
| 70 | +/- 0.60 | 93.0 | 172 | 296 | 370 | 458 | 630 | |
| 75 | +/- 0.60 | 97.5 | 180 | 309 | 385 | 476 | 652 | |
| 80 | +/- 0.60 | 102 | 188 | 321 | 400 | 494 | 675 | 899 |
| 85 | +/- 0.70 | 107 | 196 | 334 | 415 | 511 | 697 | 917 |
| 90 | +/- 0.70 | 111 | 204 | 346 | 430 | 529 | 720 | 945 |
| 95 | +/- 0.70 | 116 | 212 | 358 | 445 | 547 | 742 | 972 |
| 100 | +/- 0.70 | 120 | 220 | 371 | 460 | 565 | 765 | 1.000 |
| 105 | +/- 0.70 | 124 | 228 | 383 | 475 | 582 | 787 | 1.030 |
| 110 | +/- 0.70 | 129 | 236 | 395 | 490 | 600 | 810 | 1.060 |
| 115 | +/- 0.70 | 134 | 244 | 407 | 504 | 618 | 832 | 1.090 |
| 120 | +/- 0.70 | 138 | 252 | 420 | 519 | 636 | 855 | 1.110 |
| 125 | +/- 0.80 | 260 | 432 | 534 | 653 | 877 | 1.140 | |
| 130 | +/- 0.80 | 267 | 445 | 549 | 671 | 900 | 1.170 | |
| 135 | +/- 0.80 | 275 | 457 | 564 | 689 | 922 | 1.200 | |
| 140 | +/- 0.80 | 283 | 469 | 579 | 707 | 945 | 1.220 | |
| 145 | +/- 0.80 | 291 | 482 | 594 | 724 | 967 | 1.250 | |
| 150 | +/- 0.80 | 299 | 494 | 608 | 742 | 990 | 1.280 | |
| 155 | +/- 0.80 | 506 | 623 | 760 | 1.010 | 1.310 | ||
| 160 | +/- 0.80 | 519 | 638 | 778 | 1.030 | 1.340 | ||
| 165 | +/- 0.80 | 531 | 653 | 795 | 1.050 | 1.360 | ||
| 170 | +/- 0.80 | 543 | 660 | 813 | 1.080 | 1.390 | ||
| 175 | +/- 0.80 | 556 | 683 | 831 | 1.100 | 1.420 | ||
| 180 | +/- 0.80 | 698 | 849 | 1.120 | 1.450 | |||
| 185 | +/- 0.92 | 713 | 866 | 1.140 | 1.470 | |||
| 190 | +/- 0.92 | 728 | 884 | 1.170 | 1.500 | |||
| 195 | +/- 0.92 | 743 | 902 | 1.190 | 1.530 | |||
| 200 | +/- 0.92 | 758 | 920 | 1.210 | 1.560 | |||
| M12 | M16 | M20 | M22 | M24 | M27 | M30 | ||
| 15.9 | 30.8 | 60.3 | 80.2 | 103 | 154 | 216 | ||
