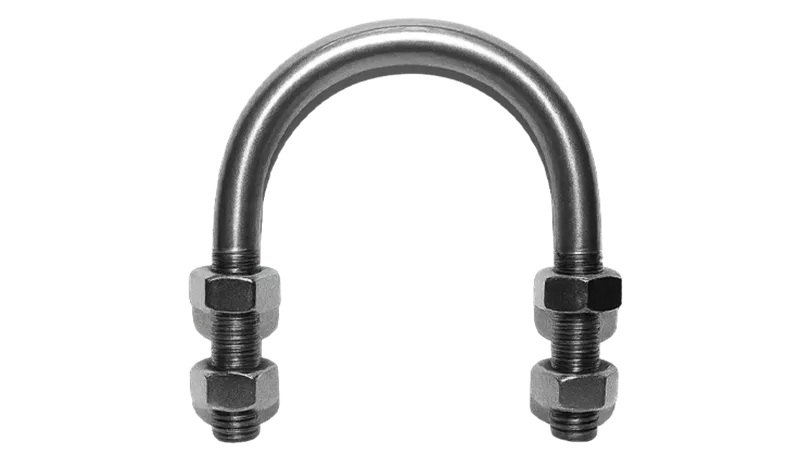

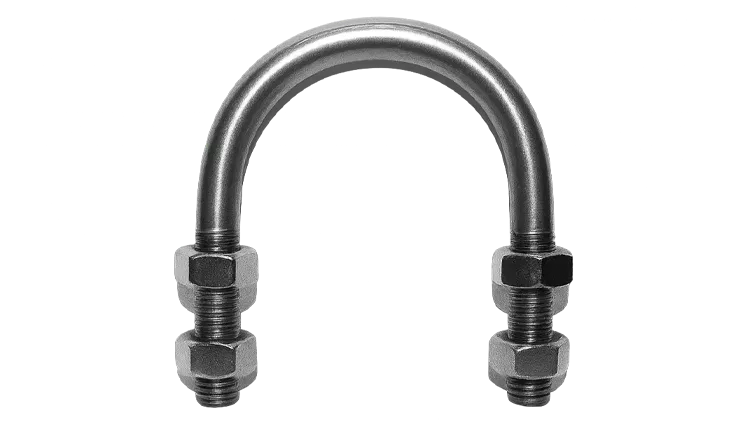

DIN3570 U BOLT

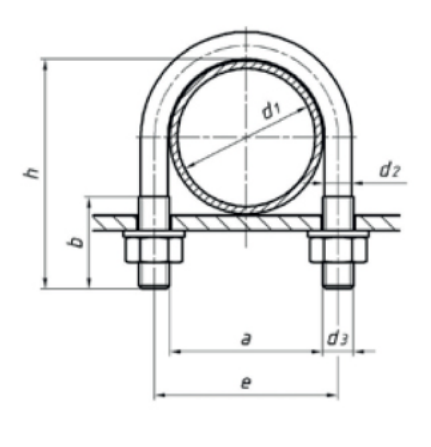

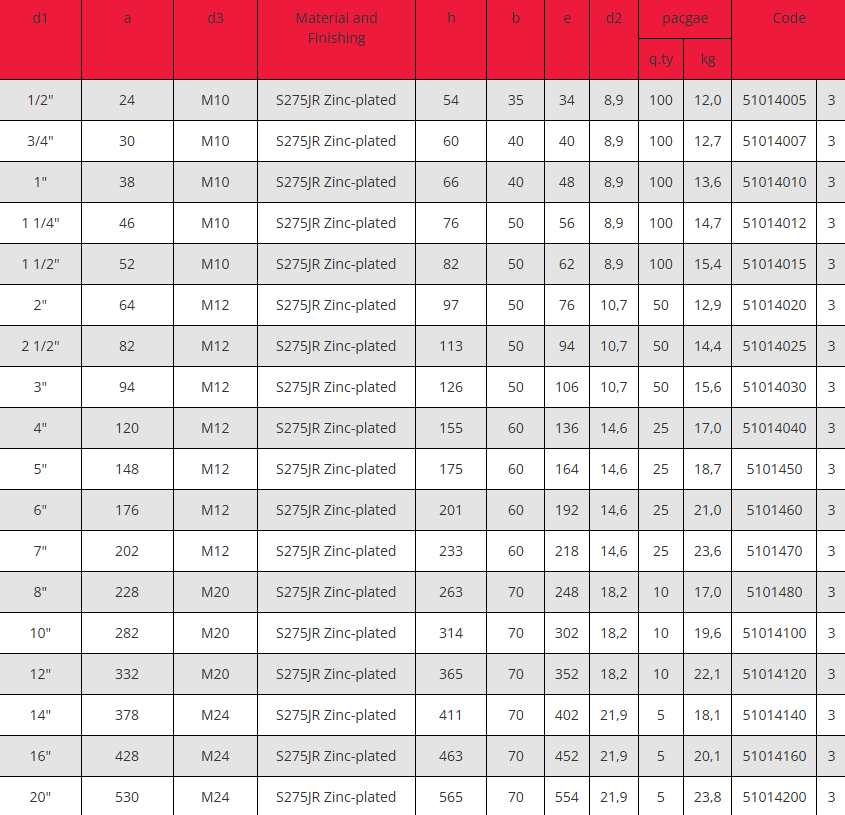

DIN3570 U BOLT TABLOSU
| d1 | a | d3 | Material and Finishing | h | b | e | d2 | pacgae | Code | ||
| q.ty | kg | ||||||||||
| 1/2" | 24 | M10 | S275JR Zinc-plated | 54 | 35 | 34 | 8,9 | 100 | 12,0 | 51014005 | 3 |
| 3/4" | 30 | M10 | S275JR Zinc-plated | 60 | 40 | 40 | 8,9 | 100 | 12,7 | 51014007 | 3 |
| 1" | 38 | M10 | S275JR Zinc-plated | 66 | 40 | 48 | 8,9 | 100 | 13,6 | 51014010 | 3 |
| 1 1/4" | 46 | M10 | S275JR Zinc-plated | 76 | 50 | 56 | 8,9 | 100 | 14,7 | 51014012 | 3 |
| 1 1/2" | 52 | M10 | S275JR Zinc-plated | 82 | 50 | 62 | 8,9 | 100 | 15,4 | 51014015 | 3 |
| 2" | 64 | M12 | S275JR Zinc-plated | 97 | 50 | 76 | 10,7 | 50 | 12,9 | 51014020 | 3 |
| 2 1/2" | 82 | M12 | S275JR Zinc-plated | 113 | 50 | 94 | 10,7 | 50 | 14,4 | 51014025 | 3 |
| 3" | 94 | M12 | S275JR Zinc-plated | 126 | 50 | 106 | 10,7 | 50 | 15,6 | 51014030 | 3 |
| 4" | 120 | M12 | S275JR Zinc-plated | 155 | 60 | 136 | 14,6 | 25 | 17,0 | 51014040 | 3 |
| 5" | 148 | M12 | S275JR Zinc-plated | 175 | 60 | 164 | 14,6 | 25 | 18,7 | 5101450 | 3 |
| 6" | 176 | M12 | S275JR Zinc-plated | 201 | 60 | 192 | 14,6 | 25 | 21,0 | 5101460 | 3 |
| 7" | 202 | M12 | S275JR Zinc-plated | 233 | 60 | 218 | 14,6 | 25 | 23,6 | 5101470 | 3 |
| 8" | 228 | M20 | S275JR Zinc-plated | 263 | 70 | 248 | 18,2 | 10 | 17,0 | 5101480 | 3 |
| 10" | 282 | M20 | S275JR Zinc-plated | 314 | 70 | 302 | 18,2 | 10 | 19,6 | 51014100 | 3 |
| 12" | 332 | M20 | S275JR Zinc-plated | 365 | 70 | 352 | 18,2 | 10 | 22,1 | 51014120 | 3 |
| 14" | 378 | M24 | S275JR Zinc-plated | 411 | 70 | 402 | 21,9 | 5 | 18,1 | 51014140 | 3 |
| 16" | 428 | M24 | S275JR Zinc-plated | 463 | 70 | 452 | 21,9 | 5 | 20,1 | 51014160 | 3 |
| 20" | 530 | M24 | S275JR Zinc-plated | 565 | 70 | 554 | 21,9 | 5 | 23,8 | 51014200 | 3 |
